Stillness IV

STILLNESS IV® is a damping system and sound-insulating board composed of anti-vibration and high-mass elements. Selected inorganic materials of varying density and thickness are combined into a composite layer with the best sound insulation and vibration damping properties, for effective insulation of mid-low and low-frequency sound transmission.
The layers of each composite model are bonded under high pressure on the so-called "sandwich" principle.
These composite damping, anti-vibration and sound-insulating boards are far more practical than traditional layer-by-layer constructions and provide an effective reduction of sound transmitted through walls and ceilings in all types of applications, from the music industry to industrial premises. This multi-layer construction is portable and easy to install using screws or contact adhesive. It can easily be cut to fit the dimensions of the room.

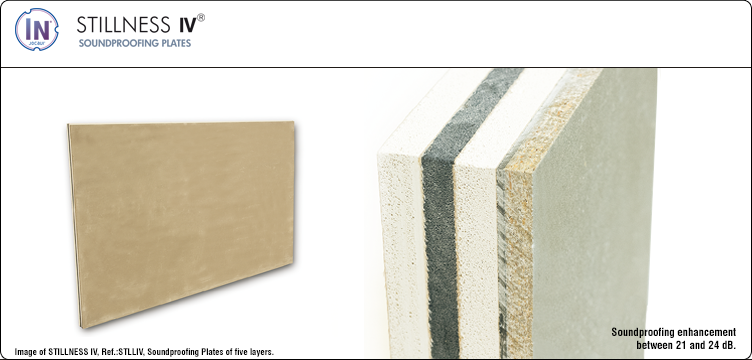

STILLNESS IV® consists of:
1 layer of BA13 (13 mm), 1 layer of Floatsheet® INS polyurethane (10 mm), 1 layer of BA13 (13 mm), 1 layer of Floatsheet® VIB (2 mm) and 1 layer of WCC - wood-cement composite (8 mm).

Stillness IV features

• Depending on the composition of the base wall or ceiling, this material can increase sound insulation by 21 to 24 dB
• Installation: with screws or contact adhesive.
• Fire resistance: Bs1.
• Environmentally friendly material.
• Flat high-density board, can be painted
• Also suitable for large-area applications
• Total thickness: 46 mm

Acoustic elementMade by Jocavi (Portugal)
